产品介绍
![](https://omo-oss-image.thefastimg.com/common/design/detail/0cea482f-200c-46c5-9889-8b9e033bb0d5.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/1779f2ed-b8e9-45d1-bca1-e2a762a2312a.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/045e1997-be9b-446d-a3fd-76ae31fba49f.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/8268fb68-6323-418c-a565-965b53381c93.jpg)
![](https://omo-oss-file.thefastfile.com/portal-saas/new2022072923460166674/cms/file/%E9%81%AE%E5%85%89%E7%BD%A9%E5%8D%A1%E6%89%A3.gif?cmsTs=1718159775822)
![](https://omo-oss-image.thefastimg.com/common/design/detail/a263c96c-9b60-4bae-a558-ef30e0d1f2c7.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/fe0c6177-d578-4f7b-aacb-908ce070f234.jpg)
![](https://omo-oss-file.thefastfile.com/portal-saas/new2022072923460166674/cms/file/sqa55%E7%83%AD%E9%9D%B4%E6%93%8D%E4%BD%9C-%E5%AE%89%E8%A3%85(1).gif?cmsTs=1719369103570)
![](https://omo-oss-file.thefastfile.com/portal-saas/new2022072923460166674/cms/file/sqa55%E7%83%AD%E9%9D%B4%E6%93%8D%E4%BD%9C-%E6%8B%86%E5%8D%B8(1).gif?cmsTs=1719369094602)
![](https://omo-oss-image.thefastimg.com/common/design/detail/1e661422-d0ad-4df4-8266-7f26703ea342.jpg)
![](https://omo-oss-file.thefastfile.com/portal-saas/new2022072923460166674/cms/file/%E7%BD%91%E9%A1%B5-06.gif?cmsTs=1718157318975)
![](https://omo-oss-image.thefastimg.com/common/design/detail/3eea96ae-2f36-436b-b4f2-49def4e21162.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/1118e4fc-2f5b-498d-850e-637ff544734c.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/34320e0d-a63d-4521-8fe1-693559a73c7e.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/10ff9ba2-5875-438e-8719-c9643b47a2d5.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/5f0408fc-973e-493b-b2c0-77cd22ed18f0.jpg)
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022072923460166674/cms/image/45431a86-fcc4-487c-97df-2f416a7bf364.jpg)
![](https://omo-oss-image.thefastimg.com/common/design/detail/485901be-95cf-4713-880b-8ed749a16542.jpg)
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022072923460166674/cms/image/f107ff17-4c9c-45f6-8069-529ad3166310.jpg)
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022072923460166674/cms/image/2e99ca8c-c8e7-4733-a5d5-2ea18a980ae5.jpg)
![](https://omo-oss-image.thefastimg.com/portal-saas/new2022072923460166674/cms/image/61e3f006-9093-474c-8806-a4ec74645507.jpg)
产品参数
SQA55 参数 |
||
有效口径 |
55mm |
|
焦距 |
264mm |
|
焦比 |
f/4.8 |
|
物镜类型 |
五片式全分离petzval APO(其中一片为SD玻璃,一片为ED玻璃) |
|
成像圈 |
44mm |
|
光圈叶片 |
14片 |
|
有级光圈 |
f/4.8-f/22 |
|
最近对焦距离 |
5m |
|
对焦方式 |
手动对焦 |
|
滤镜直径 |
M67 |
|
全长 |
316mm(使用遮光罩)244mm(无遮光罩) |
|
OTA 重量 |
1.84kg |
|
总重(包含提手和鸠尾板) |
2.18kg |
|

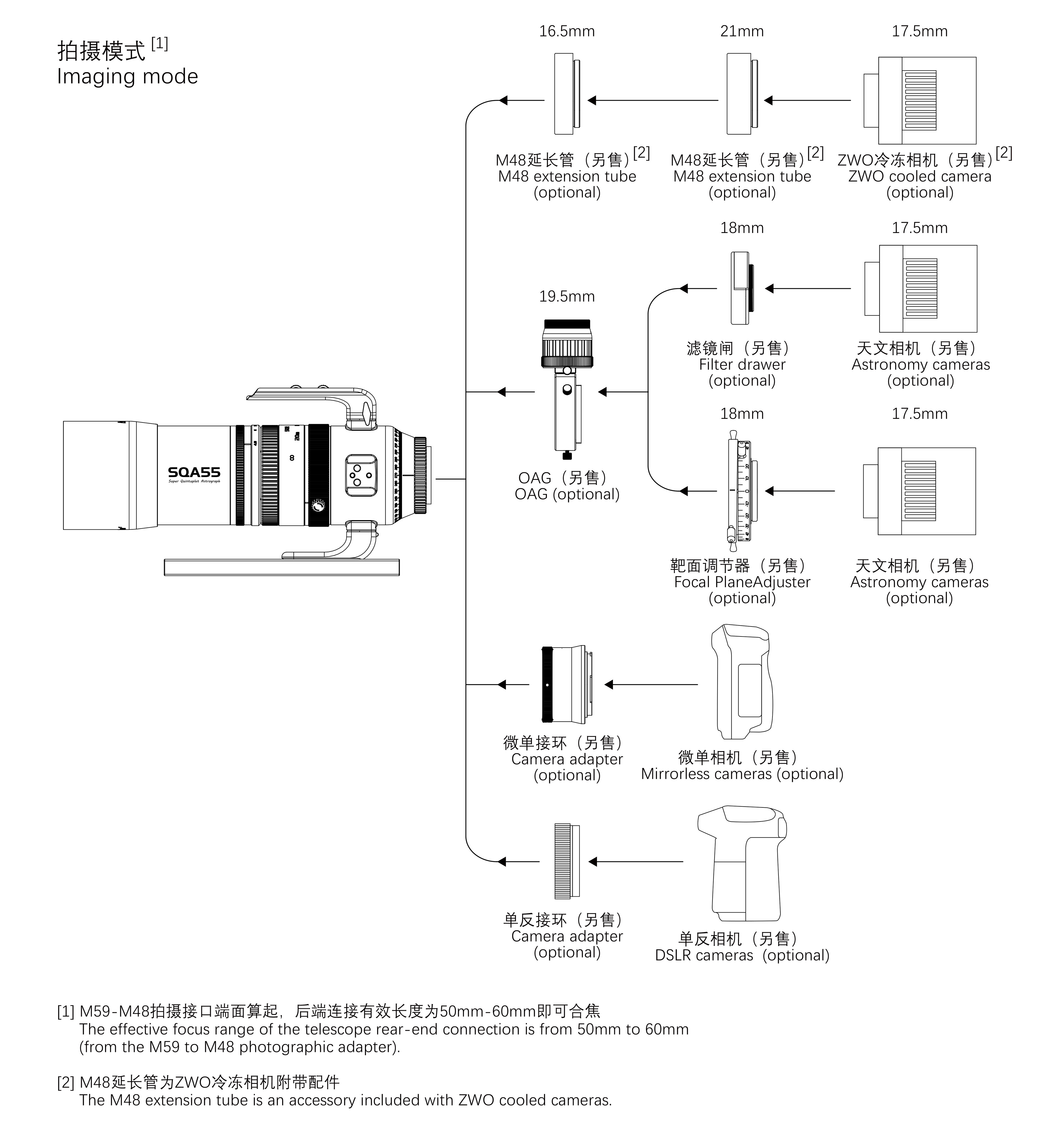

末端接口 |
M48*0.75(内置2英寸滤镜螺纹) |
|
末端连接距离 |
支持50-60mm的范围区间(建议连接长度为55mm) |
|
标配 |
本体,安全箱 |

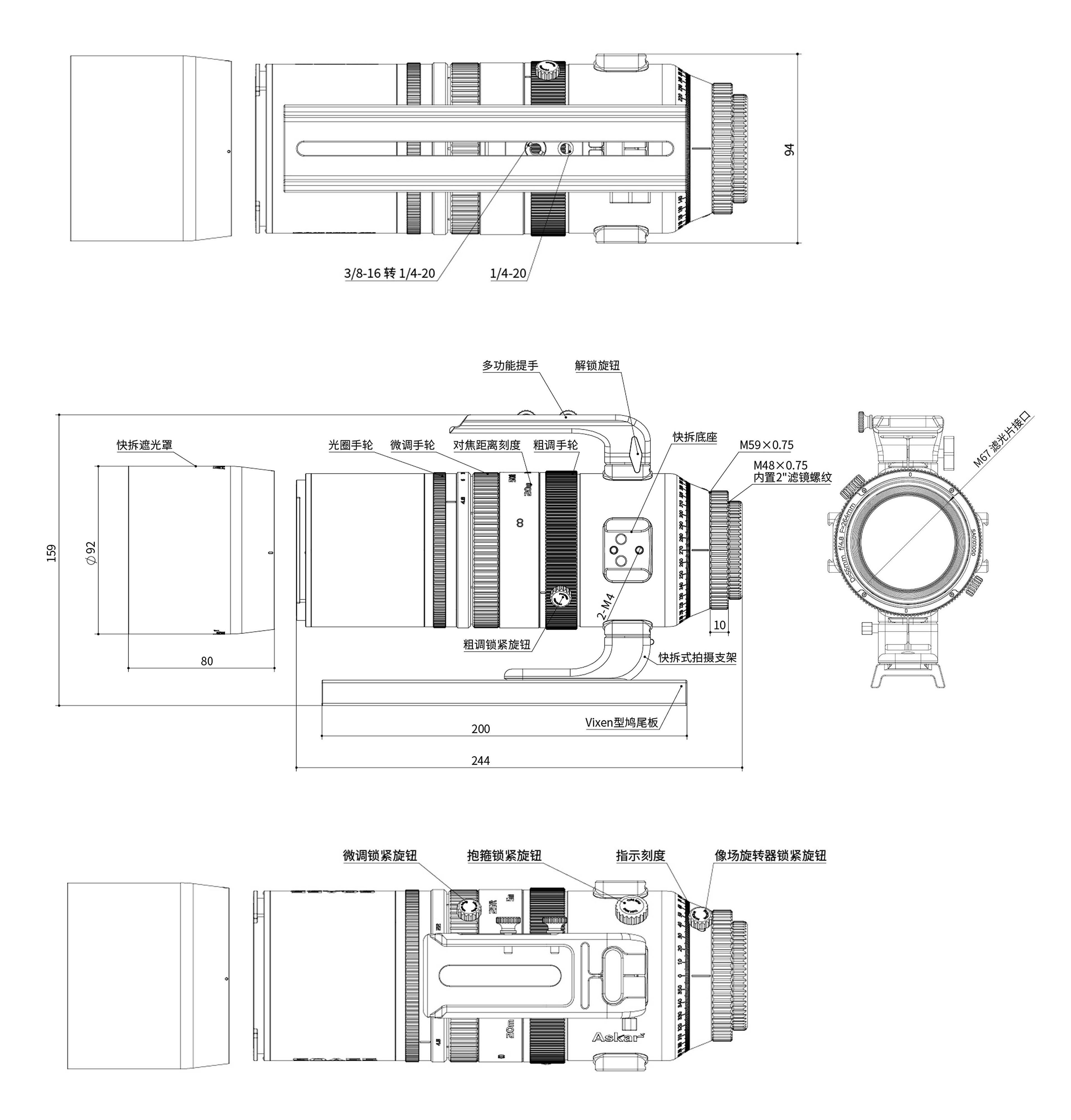

尺寸图 |

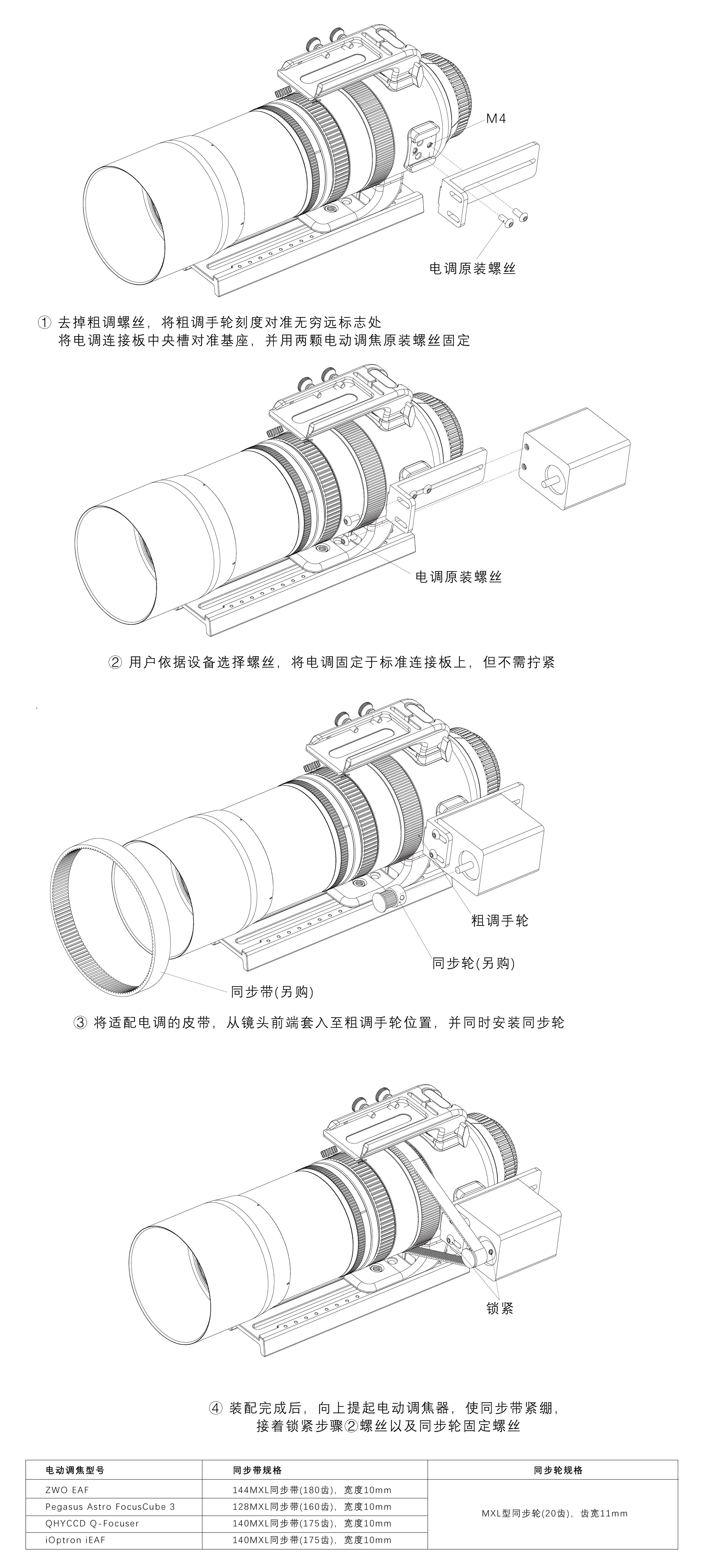

SQA55标准电动调焦装配示意图 |
产品视频
宣传视频·深空天文 |
宣传视频·风光摄影 |
星空图
祝立群 | 北美星云 NGC7000 | ASKAR SQA55 + ZWO ASI 6200
sandwall & ARK | 三叶+礁湖星云 M20+M8 | ASKAR SQA55 + ZWO ASI 2600MC Pro
Drew Evans | THE GREAT RHO OPHIUCHI CLOUD COMPLEX | ASKAR SQA55 + ZWO ASI2600MC DUO · ZWO ASI2600MM Pro
sandwall | 面纱星云 Veil Nebula | ASKAR SQA55 + ZWO ASI 2600MC Pro
